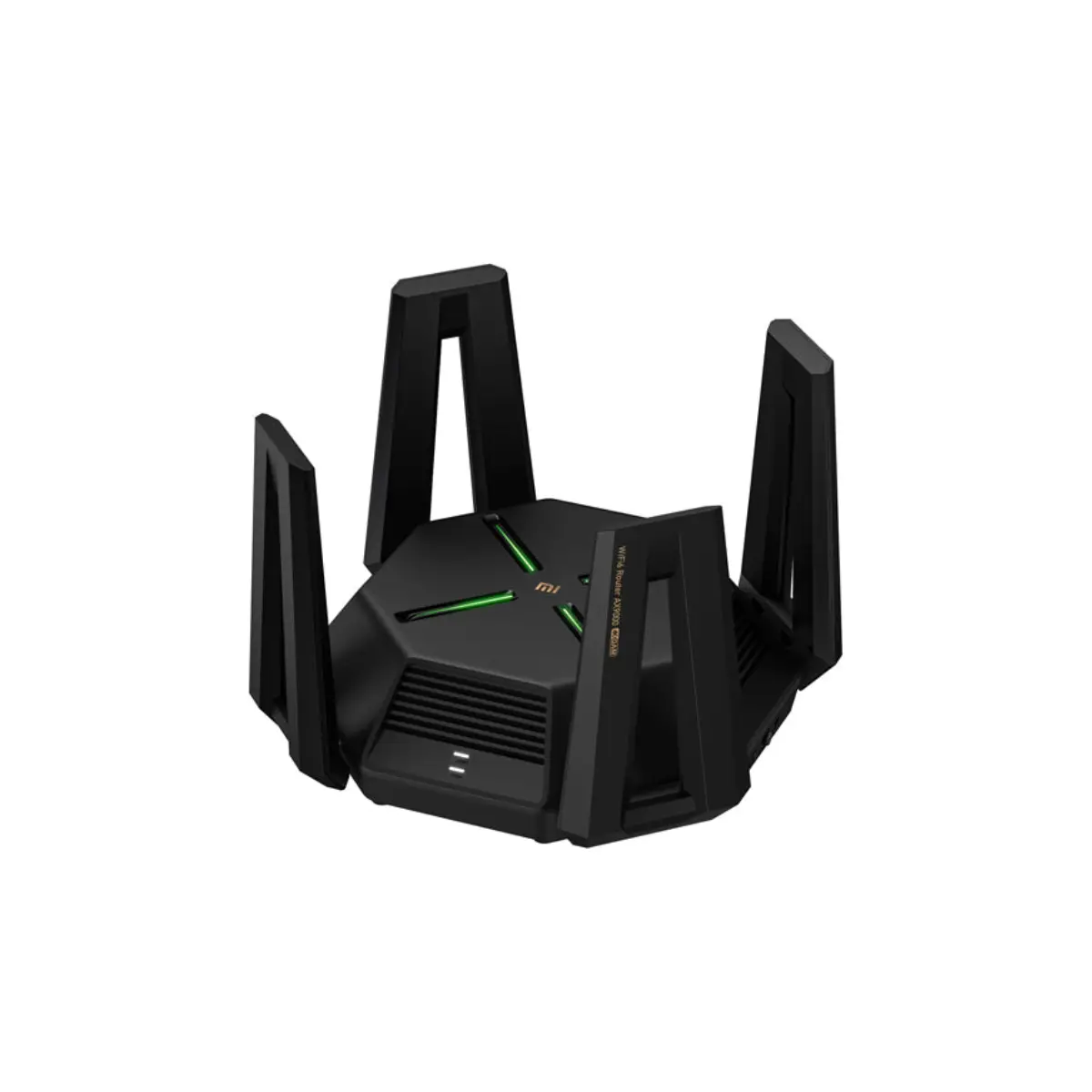

Mi Router AX9000

Key Features:

• Processor: Qualcomm® IPQ8072 quad-core A53 2.2GHz CPU
• Network processing unit: Dual core 1.7GHz NPU
• Built for Gamers, Tri-Band Wi-Fi 6
• 9000Mbps* mega-speed experience
• 160MHz bandwidth
• 4K QAM + 160 MHz
• Memory: 1GB
• 2.5Gbps Gaming Ethernet port
• 2.4G Wi-Fi – 5GHz-1 Wi-Fi – 5GHz-2 Wi-Fi
• 5GHz for Gaming & Entertainment – 2.4GHz for smart home devices

General Features:

• Antennas: External high gain antenna + internal AIoT antenna
• Heat dissipation: Active cooling
• Total ports:
  • 10/100/1000/2500Mbps adaptive WAN/LAN port (Auto MDI/MDIX) ×1
  • 10/100/1000Mbps adaptive WAN/LAN port (Auto MDI/MDIX) ×1
  • 10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX)” ×3
• LED indicator light: 8 lights, include: System indicator × 1, Internet indicator × 1, Network port × 5, Atmosphere light × 1
• Protocol standards: IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
• L×W×H (per unit): 270mm × 270mm × 174mm
• Package Contents: Mi Router AX9000 ×1 – Instruction Manual ×1 – Power adapter ×1 – Network cable ×1
